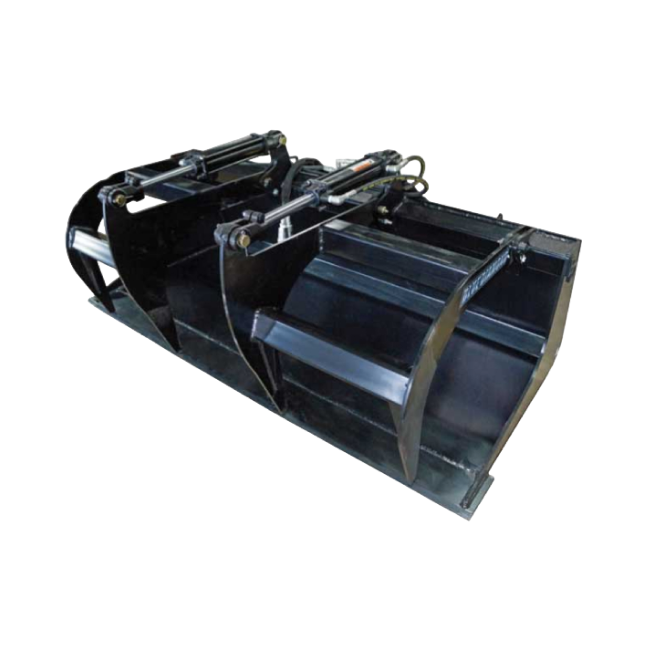

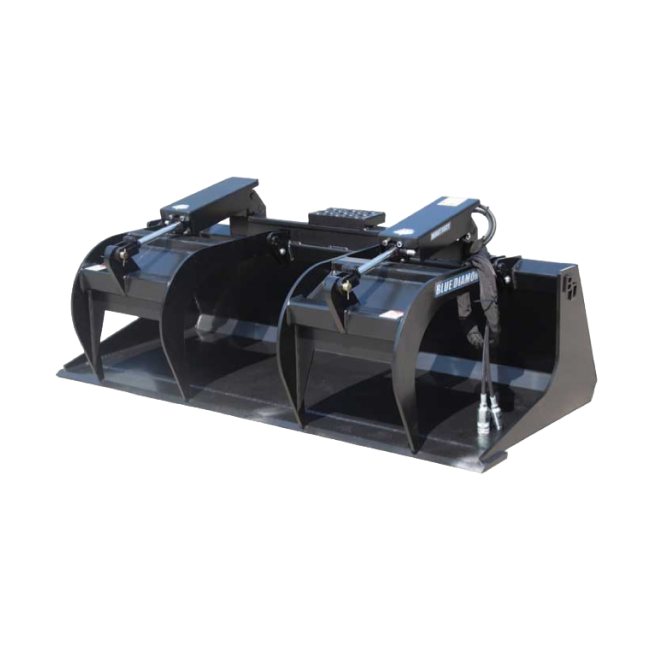

GRAPPLE BUCKET LIGHT, HEAVY & SEVERE DUTY

The Blue Diamond® Light Duty Grapple is designed for small loaders with limited lift capacity. Weighing less than 500 lbs, it eliminates the worry of tipping the machine. Dual top clamps and grease fittings are standard. These lightweight grapples are suited for machines with lifting capacity of up to 1,500 lbs.

The Blue Diamond® Heavy Duty Grapple is designed for machines up to 50 HP or 2,500 lbs lift capacity with a moderate workload. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard. Available in 60”, 66” and 72” widths with excellent visibility.

The rugged Blue Diamond® Severe Duty Grapple Bucket comes from years of input from demolition contractors and recyclers. The severe duty model combines features from our previous demolition series, our extreme duty model, and some new features to put it among the most effective and durable grapple buckets in the industry. The operator can use the bolt-on sides to contain more material or can remove the sides for handling longer products like pipe or trees. The pivot points are designed for the heavy continuous use seen in large recycling and scrap metal facilities. The pivot pins are 1.25” diameter and are housed in bushings with grease fittings. The upper clamps use 2 heavy gauge crossmembers, and a solid plate protects the bottom of the cylinder. The no-pinch hose routing helps to prevent downtime from crushed hoses.
